Fin Box Voids

Postby MicNugget » Tue May 19, 2020 9:13 pm

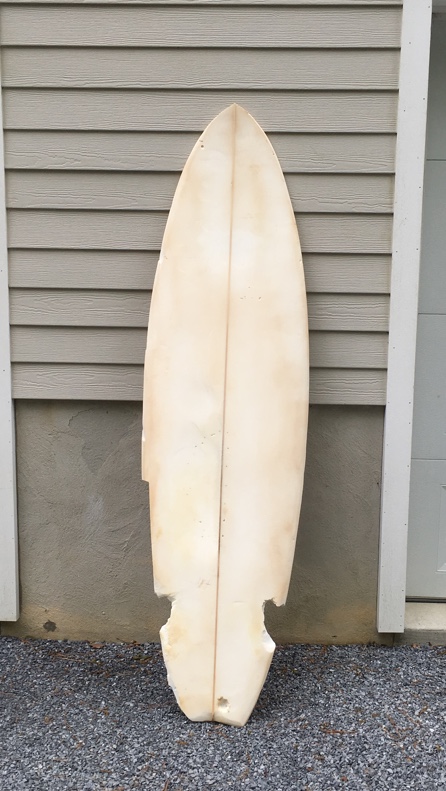

Hey guys, I'm new to this forum. I picked up a horrible rotten mess recently that I just finished cleaning up. It's a 6'6 polyurethane fish with major rot around the fin boxes. After deglassing the fin boxes practically fell out. I removed all the rotten foam away from the boxes and rails but now am left with less material than I expected. I'm considering all options: Microbaloons, Qcell, 4 lb polyurethane pour foam.

What are the pros and cons of each. I obviously need something strong enough for fins.
Thanks guys!!
Attachments
MicNugget
New Member

Posts: 2
Likes: 0 post
Liked in: 0 post
Joined: Tue May 19, 2020 9:02 pm

Re: Fin Box Voids

Postby waikikikichan » Wed May 20, 2020 12:05 am

Cut out the fin area in clean 90 degree angles.
Get a donor board / blank and cut out a matching foam block to fit into the void.
Resin it in.
Shape / sand down the foam to match deck / rail / bottom.

p.s. That's not a fish shape.
User avatar
waikikikichan
Surf God

Posts: 4783
Likes: 0 post
Liked in: 0 post
Joined: Mon Sep 01, 2014 11:35 pm
Location: Tokyo, Japan

Re: Fin Box Voids

Postby MicNugget » Wed May 20, 2020 1:36 am

My bad, I guess you'd call it a swallowtail
MicNugget
New Member

Posts: 2
Likes: 0 post
Liked in: 0 post
Joined: Tue May 19, 2020 9:02 pm

Re: Fin Box Voids

Postby oldmansurfer » Wed May 20, 2020 4:37 pm

Hahaha most likely most of us would never tackle a job like that. Why not get a new blank? Anyway my thoughts are anything with resin is going to make the board heavier and with the huge defects you have to replace that would alter how the board works significantly. If you have an option to pour new foam that might be the solution however I have never heard of anyone doing that know nothing about the possible problems associated with that. all said and done you will likely end up with a board that would have a significantly shorter lifespan than a new board because you are starting with old foam
So what is worse.... dying or regretting it for the rest of my life? Obviously I chose not regretting it.
User avatar
oldmansurfer
Surf God

Posts: 8193
Likes: 0 post
Liked in: 0 post
Joined: Mon Aug 12, 2013 9:10 pm
Location: Kauai
